Excellent technical advantages for high reliability and EPC cost reduction | Safe and aesthetic
Reliable upgrade with leading 25-year linear warranty

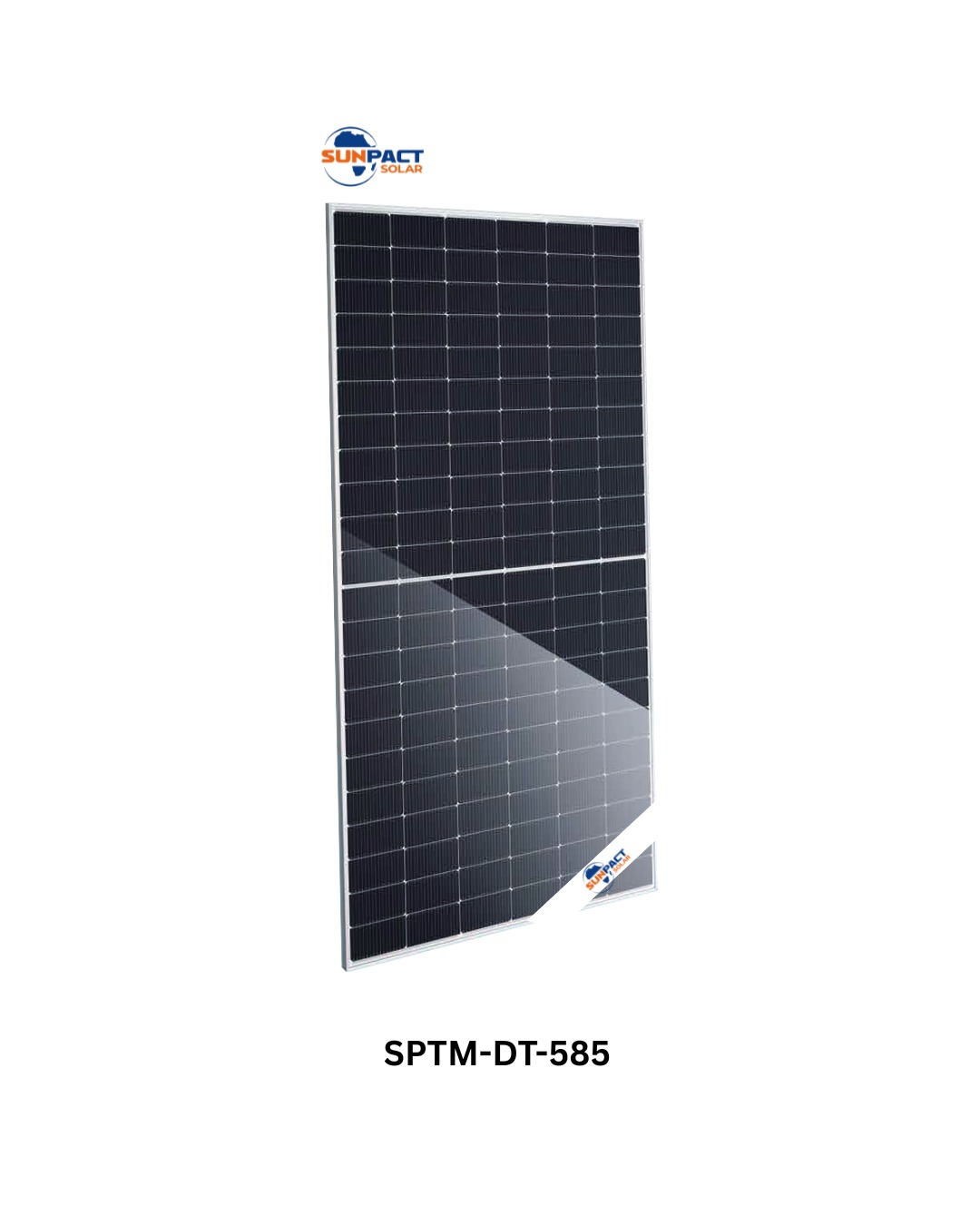

With high-quality mono 16BB half-cut cells (132 cells: 6 × 22 configuration) and robust packaging design, SPTM-DT-585 offers industry-leading PID resistance and environmental durability.
IP68 junction box with 3 diodes | Front/Back Glass: 2.0mm/2.0mm
Featuring positive power tolerance (0~+5%) and non-destructive cutting technology for maximum energy output in all conditions.
Rated Maximum Power: 585W | Open Circuit Voltage: 48.38V | Short Circuit Current: 15.26A
The 2278 × 1134 × 30mm dimensions and 31.2kg weight reduce balance of system costs including brackets, cables and labor expenses.
Packaging: 36pcs/Pallet, 720pcs/40HQ Container
Manufactured under ISO9001, ISO14001 and ISO45001 certified systems with IEC61215/IEC61730 compliance.
Operating Temperature: -40°C~+85°C | Maximum System Voltage: 1500V DC
Excellent technical advantages for high reliability and EPC cost reduction | Safe and aesthetic
Reliable upgrade with leading 25-year linear warranty

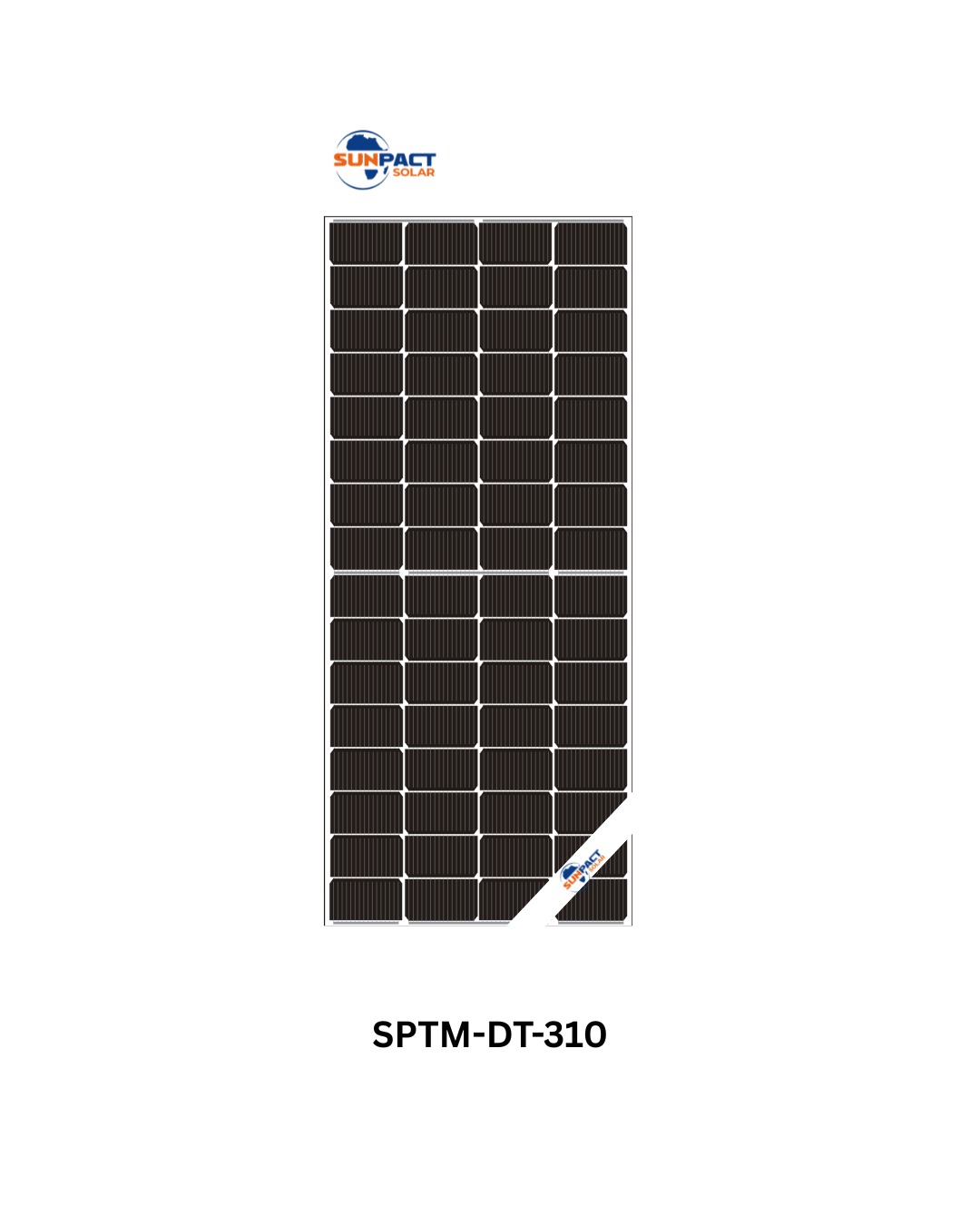

With high-quality mono 16BB half-cut cells and robust packaging design, SPTM-DT-310 offers industry-leading PID resistance and environmental durability.
Certified salt mist, ammonia, dust and hail resistance
Featuring positive power tolerance (0~+5W) and non-destructive cutting technology for maximum energy output in all conditions.
Optimized for both industrial/commercial and ground installations
The 1762x765mm dimensions and 16.8kg weight reduce balance of system costs including brackets, cables and labor expenses.
Customizable frame colors and cable lengths available
Manufactured under ISO9001, ISO14001 and ISO45001 certified systems with IEC61215/IEC61730 compliance.
Linear performance warranty: 84.8% after 25 years
Excellent technical advantages for high reliability and EPC cost reduction | Safe and aesthetic
Reliable upgrade with leading 25-year linear warranty

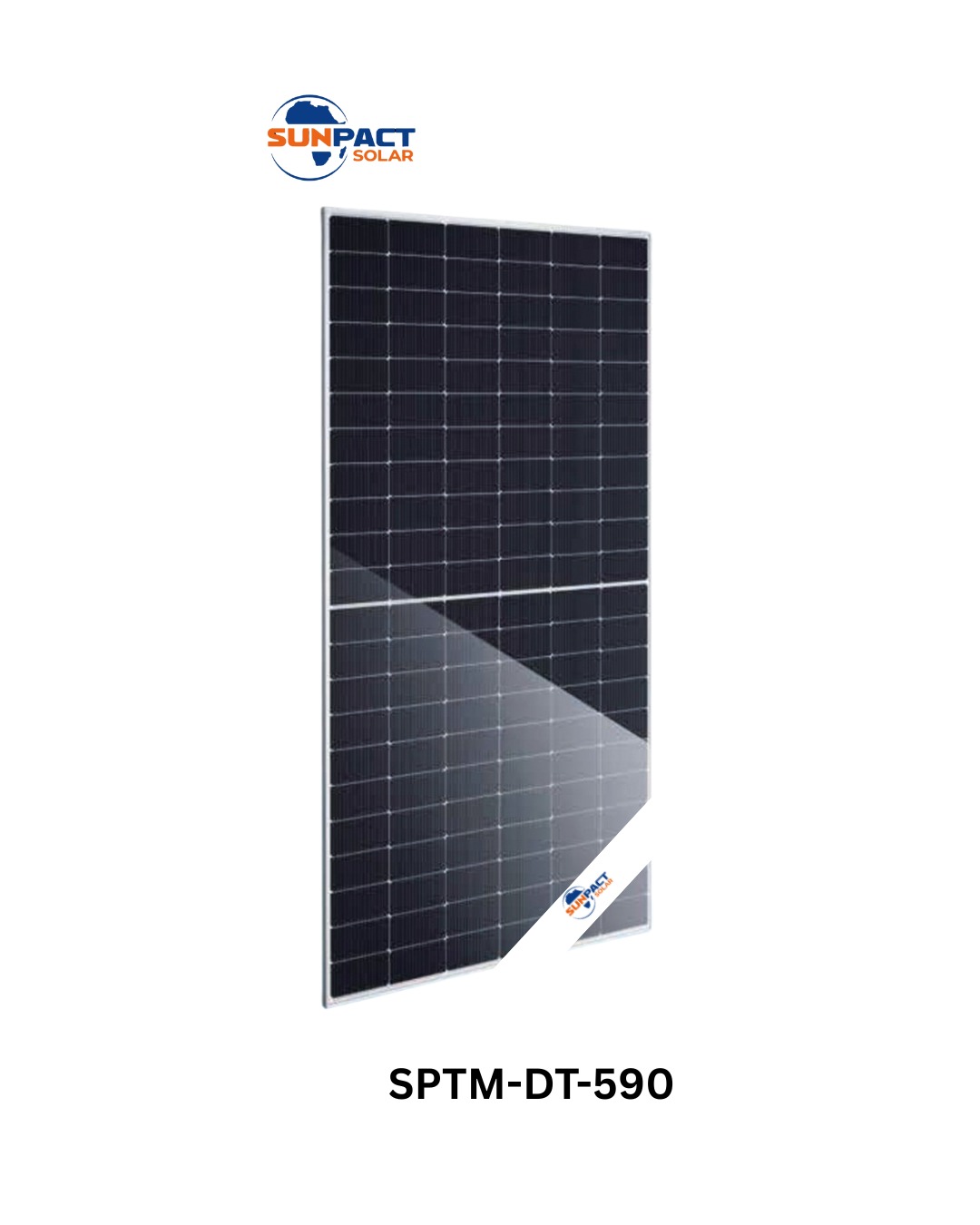

With high-quality mono 16BB half-cut cells and robust packaging design, SPTM-DT-590 offers industry-leading PID resistance and environmental durability.
IP68 junction box | Front/Back Glass protection
Featuring positive power tolerance (0~+5W) and non-destructive cutting technology for maximum energy output in all conditions.

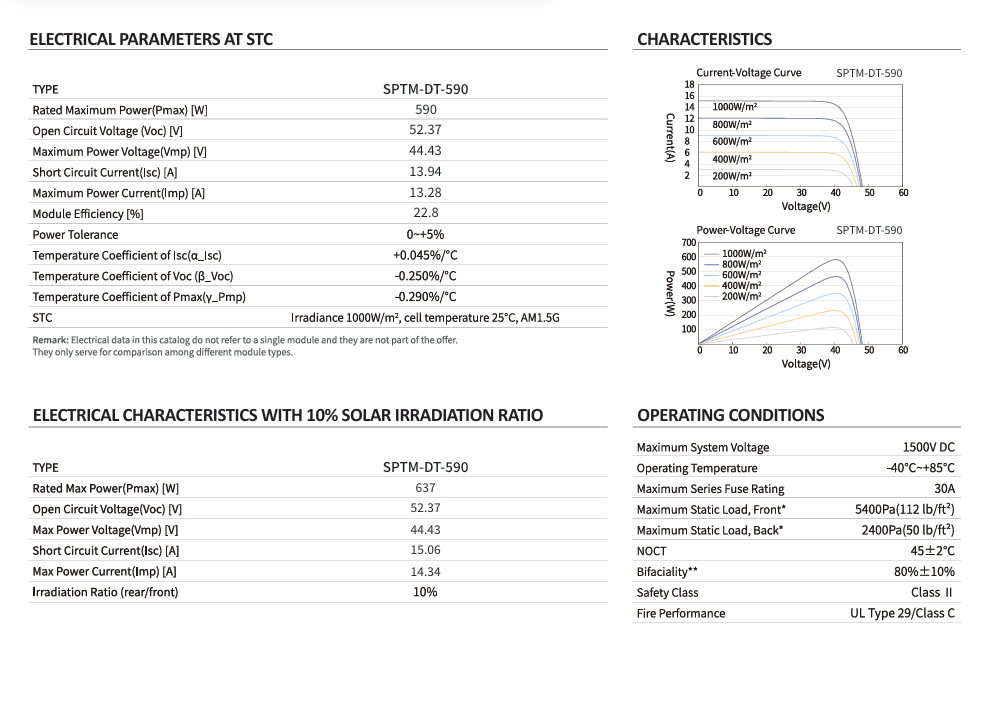

Rated Maximum Power: 590W | Optimized for various installation conditions
The optimized dimensions and weight reduce balance of system costs including brackets, cables and labor expenses.
Custom packaging configurations available
Manufactured under ISO9001, ISO14001 and ISO45001 certified systems with IEC61215/IEC61730 compliance.
Wide operating temperature range | High system voltage compatibility
